2 Channel 12V TTL Relay
ELU-TCR-102-TTL-12V
446.00 kr
TCR‑102 Series – TTL Relay Module with 2 Channels
Key Features
- 3.3V / 5V TTL logic input
- Dual‑channel SPDT relay outputs
- DIN‑rail mountable enclosure
- Durable green plastic housing
Typical Applications
- Switching of AC systems up to 250V / 3A / 150W or DC systems up to 30V / 3A / 90W

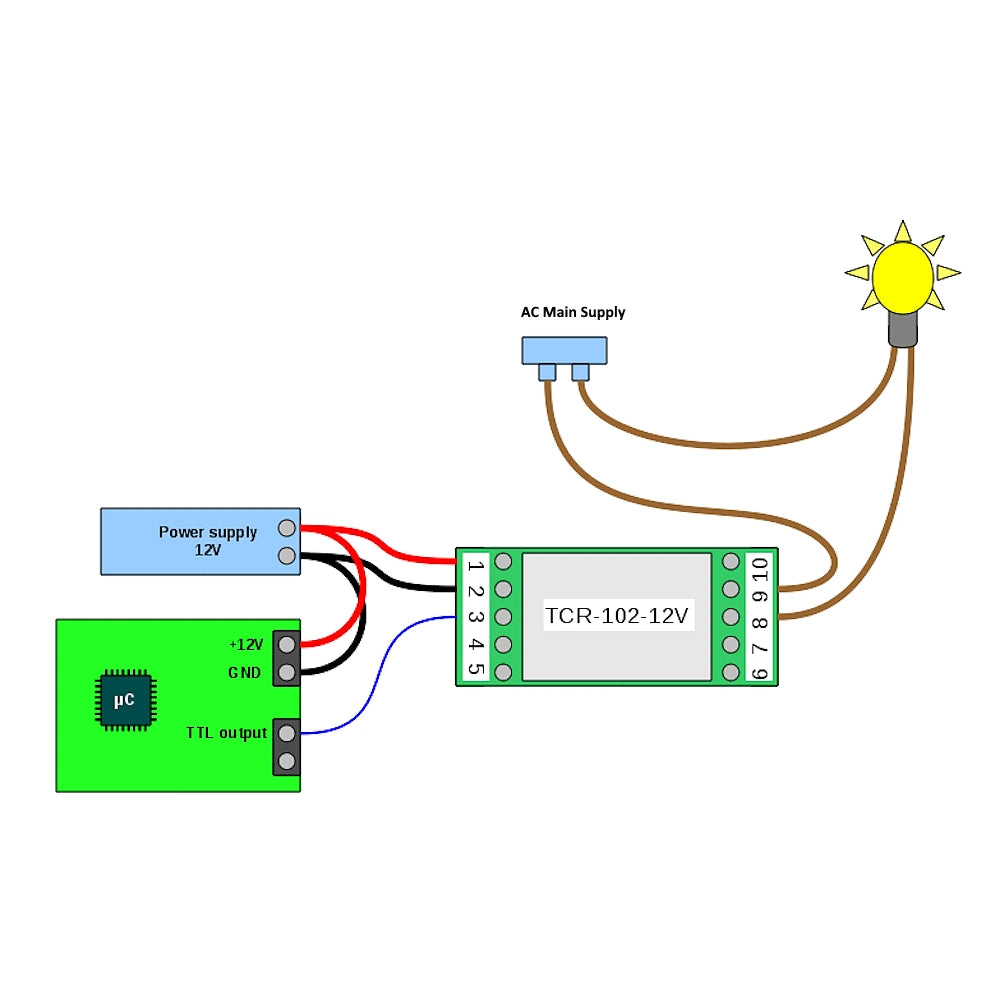

- Direct control via microcontrollers or PC parallel ports using TTL logic
- Low power consumption — ideal for battery‑powered systems
- Available models for 5V, 9V, 12V, and 24V power supply
- High reliability — suitable for mission‑critical systems
- Commonly installed in outdoor or remote applications
Description
The TCR‑102 series consists of compact, DIN‑rail mountable relay modules with two SPDT channels, designed for direct control via 3.3V or 5V TTL logic signals. The input stage supports standard TTL switching thresholds:
- LOW: 0.0–1.0 V
- HIGH: 1.8–5.0 V
This ensures reliable operation with a wide range of embedded systems and microcontrollers. The input circuitry draws minimal current, making the module ideal for low‑power and battery‑operated environments.

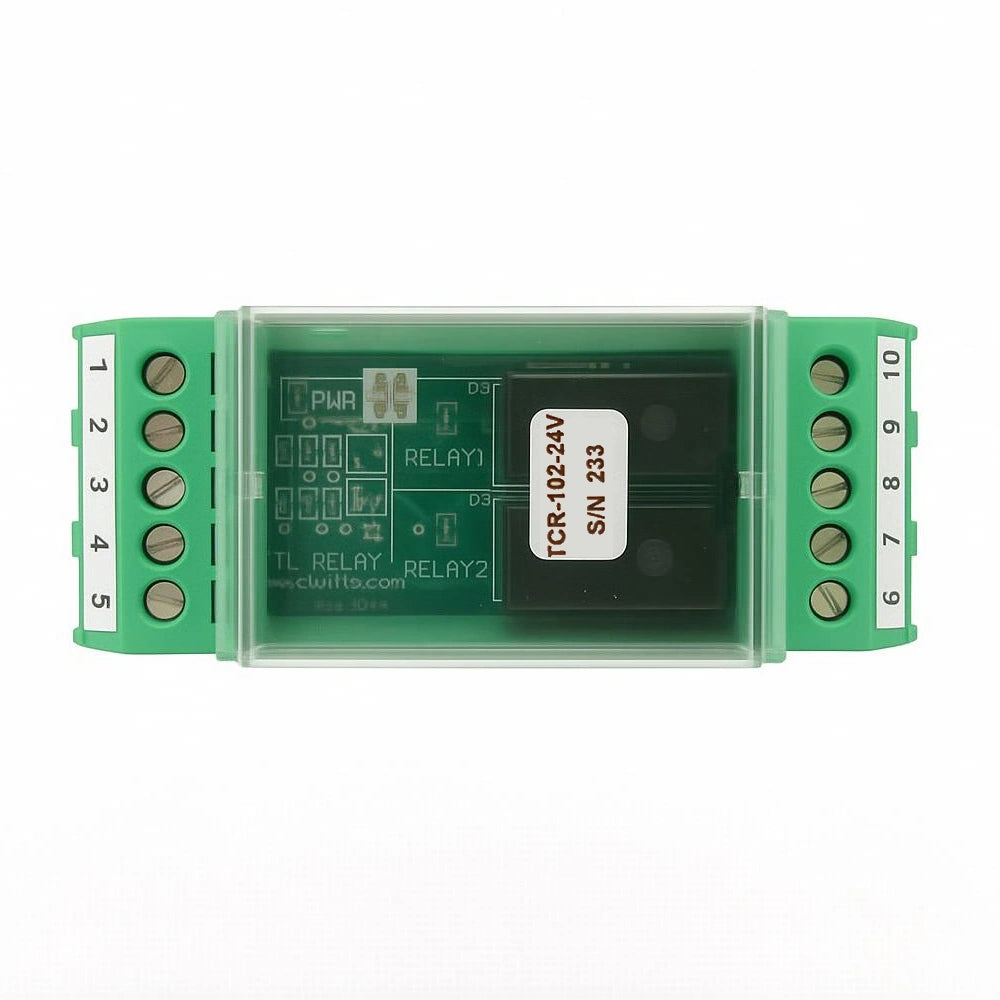

Each unit is housed in a robust green plastic enclosure, with three status LEDs indicating power and relay activation. The module is engineered for high reliability and seamless integration in automation systems, embedded control, and remote installations.
